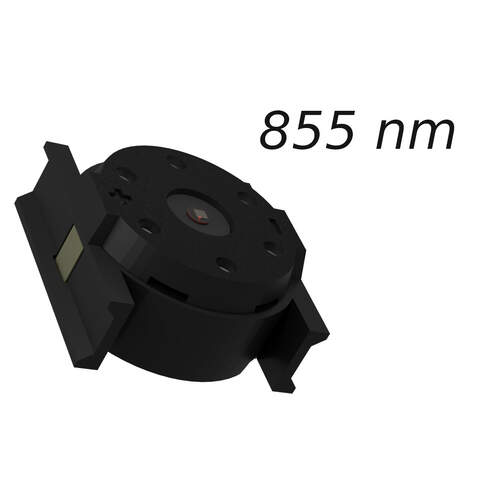

R30 Infrared
A miniature high-power LED emitter
Cheapest shipping from 10 €
Stock Status:
30 pcs
Delivery Status: 30-60 days
Pre-order item
Description
General-use R30 LED with infra-red (855 nm) light output. The IR emitter-component has different dimensions than the other emitters and so resides slightly deeper inside the R30 case.
Compatible with all our LogLED drivers. | Open-source and 3D printable design.
Note: Technical data in the "Emitter component" section are typical values as reported by the LED component manufacturer(s) at the 25°C LED junction temperature.
Technical Data
| Emitter component | |
|---|---|
| Color | Infra-red (855 nm) |
| Rated current (R C) | 1000 mA |
| Forward voltage @RC | 1.9 V |
| Light output @RC | 690 mW |
| Turn-on time | <100 ns |
| Full R30 assembly | |
| Case material | PET-G |
| Dimensions | 30 mm x 30 mm x 16 mm (14 mm excluding the out-protruding LED-dome) |
| Weight | 50 g |
