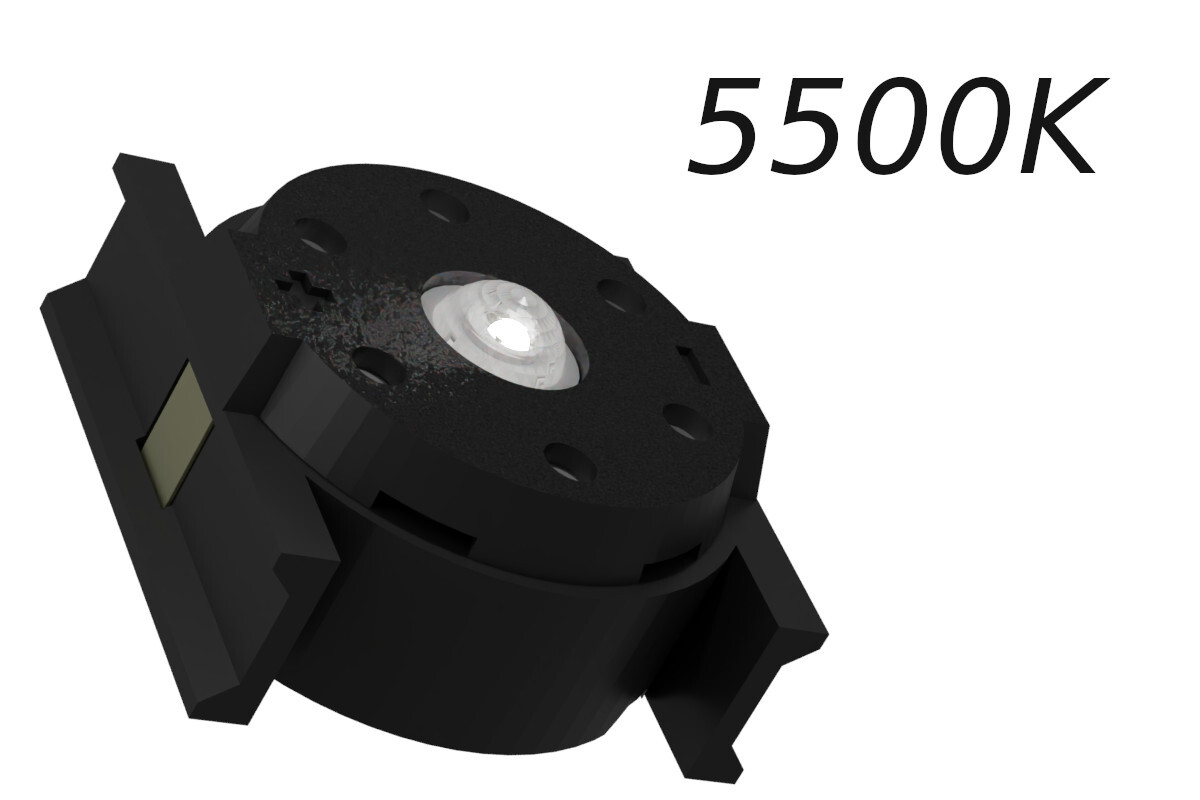

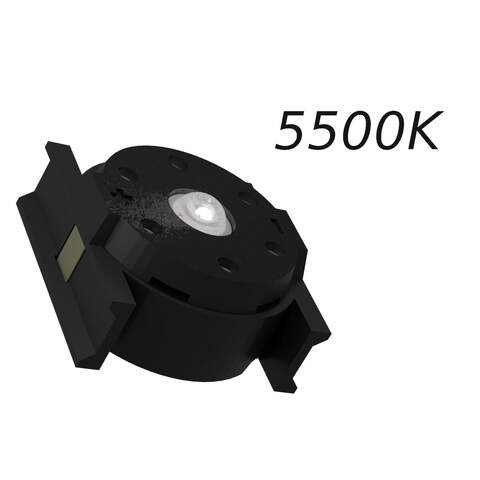

R30 White Cold
A miniature high-power LED emitter
Cheapest shipping from 10 €
Stock Status:
30 pcs
Delivery Status: 5-30 days
Manufactured on-demand
Description
A general-use R30 LED with cold white light output.
R30 LED highlights
- Light and small size
- Super bright
- Economical design | Low price-point
- Supports active cooling via driver-generated airflow
R30 LEDs are compatible with all our led drivers, open-source and user repairable.
With the LED you also need a driver, please see here
https://devjoni.com/shop/light-sources-c-9/
Note: Technical data in the "Emitter component" section are typical values as reported by the LED component manufacturer(s) at the 25°C LED junction temperature.
Technical Data
| Emitter component | |
|---|---|
| Color | 5500K (Cold white) |
| Rated current (RC) | 700 mA |
| Forward voltage @RC | 3.5V |
| Light output @RC | 274 lm |
| Turn-on time | <100 ns |
| Full R30 assembly | |
| Case material | PET-G |
| Dimensions | 30 mm x 30 mm x 16 mm (14 mm excluding the out-protruding LED-dome) |
| Weight | 50 g |
