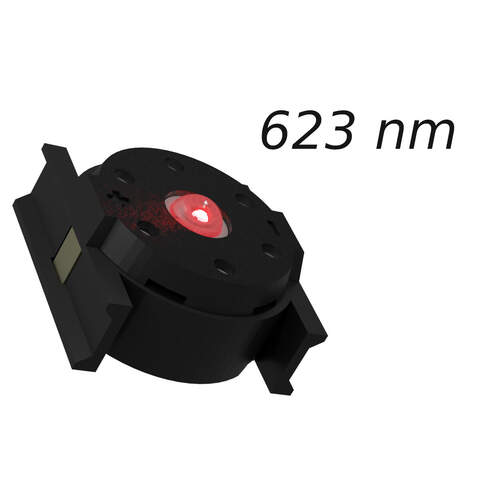

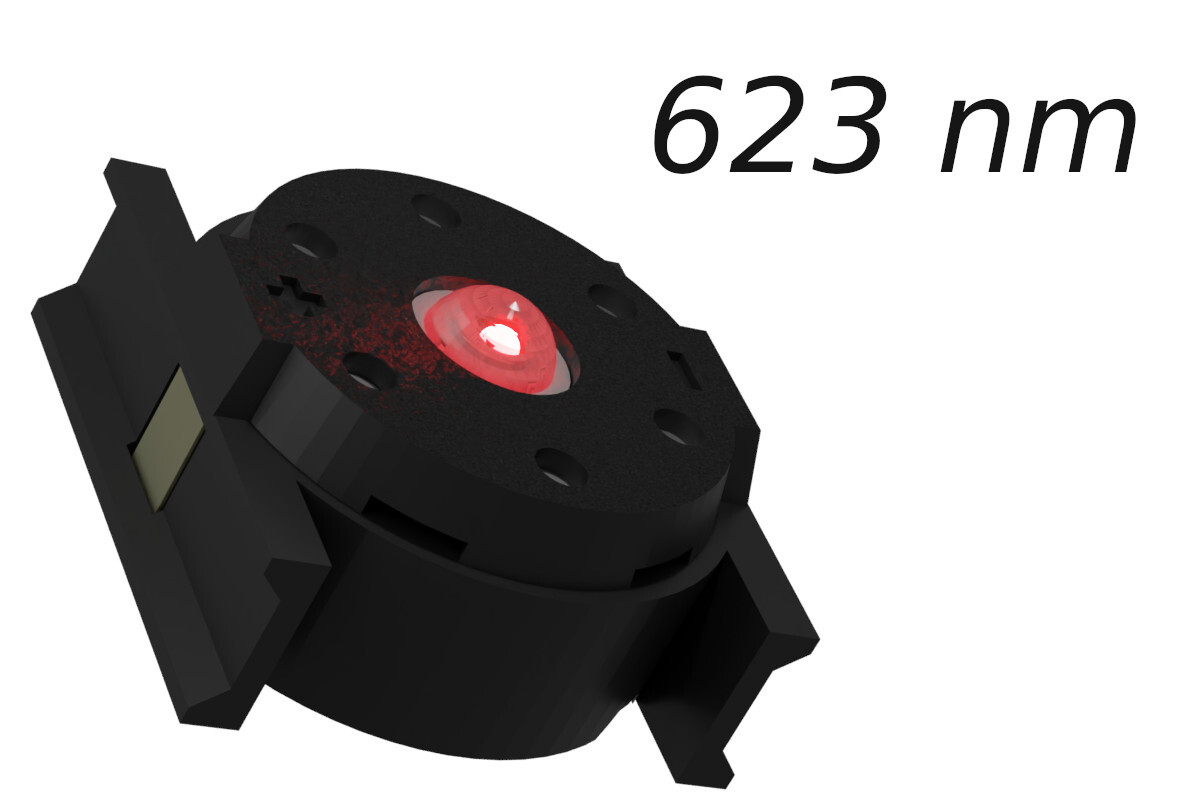

R30 Red

A miniature high-power LED emitter

Cheapest shipping from 10 €
Stock Status: 30 pcs
Delivery Status: 30-60 days
Pre-order item
40 €
Excluding Tax: 9.60 €


General-use R30 LED with red (623 nm) light output.

Compatible with all our LogLED drivers. | Open-source and 3D printable design.

Note: Technical data in the "Emitter component" section are typical values as reported by the LED component manufacturer(s) at the 25°C LED junction temperature.

Technical Data

Emitter component
Color Red (623 nm)
Rated current (R C) 700 mA
Forward voltage @RC 2.5V
Light output @RC 126 lm
Turn-on time <100 ns
Full R30 assembly
Case material PET-G
Dimensions 30 mm x 30 mm x 16 mm (14 mm excluding the out-protruding LED-dome)
Weight 50 g
