PalloFrame L10
A solid frame for holding scientific instruments
Cheapest shipping from 10 €
SKU: DEVJ-PALLOFRAME-L10
Stock Status:
8 pcs
Delivery Status: 5-30 days
Manufactured on-demand
Description
Note: This is our factory fully-assembled version of L10 - All ready connect modules with M3 bolts. For the "do it yourself" kit, please see here.

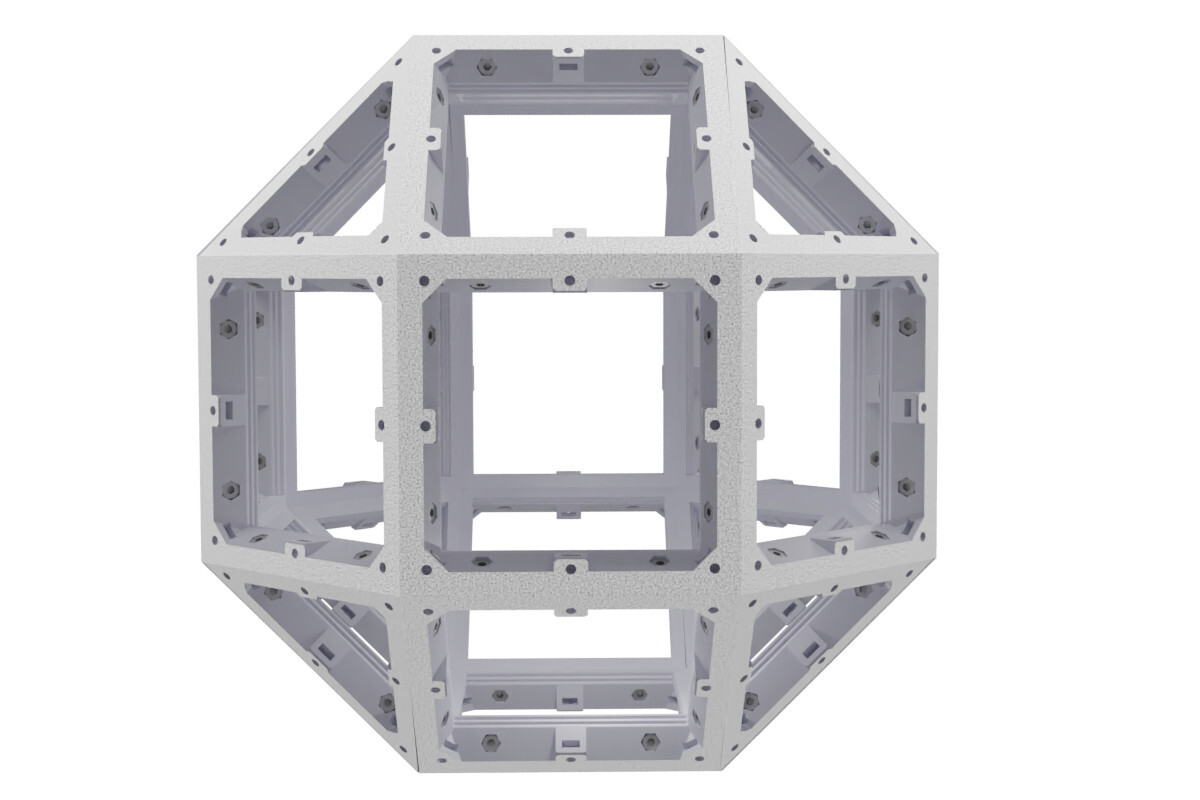

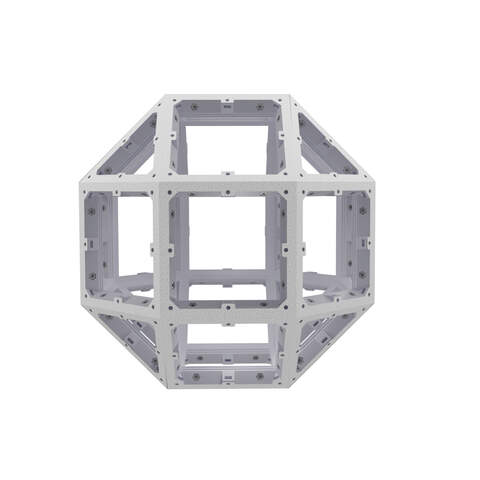

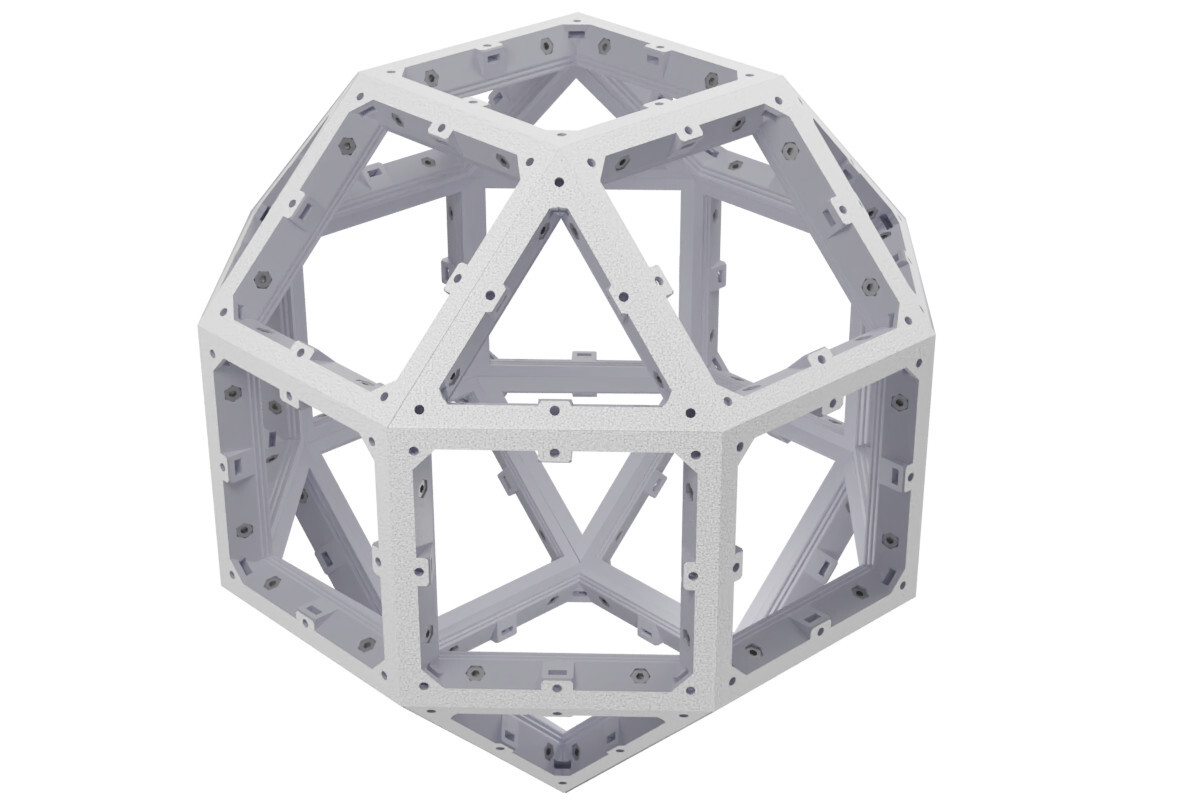

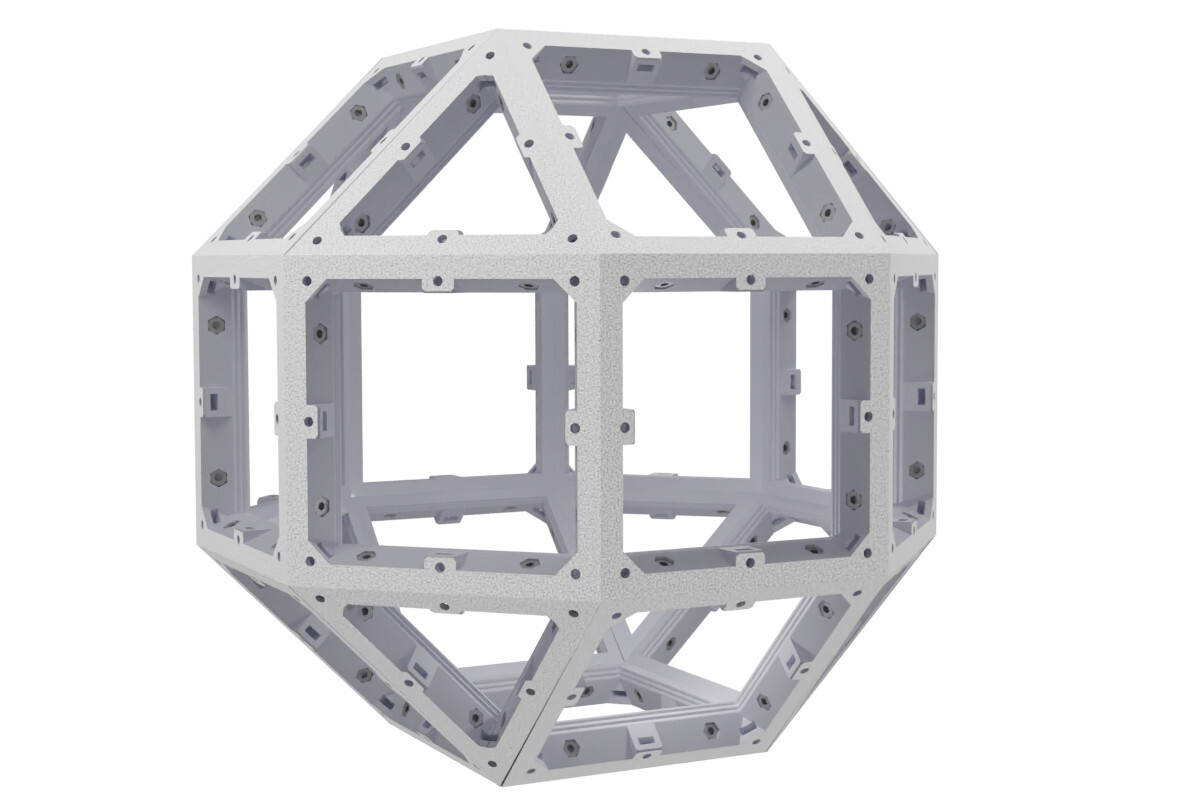

PalloFrame has excellent mechanical and geometrical properties. The super-shape "rhombicuboctahedron" has 14 square and 8 triangle faces that support many (up to 28) research modules.
The research modules can be connected to the frame with M3 metal bolts. You can get some modules from us or 3rd parties - or then, design your own and make the setup of your dreams!
L10 is our mid-size PalloFrame. It has strength and size optimal for most in-lab experiments.
Highlighted Features
- Ultra-rigid structure | Low weight
- Multi-point modular research device insertion with M3 metal bolts and nuts
- Orhogonal XYZ views | All faces look at the center
- Working and storage temperatures from -70C to +70C | Short-term chemical resistance to most solvents, acids and oils | Thermal and electric insulation by the plastic material
- Open-source (STL files available) | 3D printable spare parts | Moddable
Example Applications
- A frame for mounting a scientific instruments around the studied specimen or sample
- Skeleton for a custom microscope
- Chamber for behavioral experiments
- Frame for a robot
Links
Technical Data
| Assembly type | Ready to use |
| Material | PET-G (plastic) |
| Connections | M3 steel bolts and nuts |
| Dimensions | 241 x 241 x 241 mm |
| Weight | 710 g |
| Piece data | |
|---|---|
| Side length | 100 mm |
| Thickness | 15 mm |
| Square piece data | |
| Count | 18 |
| Inside opening (non-diagonal) | 77 mm |
| Module mounts | 8x M3 with 42 mm mount-to-mount distance |
| Triangel piece data | |
| Count | 8 |
| Inside opening | 58 mm |
| Module mounts | 6x M3 with 40 mm mount-to-mount distance |
| Additional data | |
| Revision | A |
| Model availability | STL files |
| 3D print settings | Infill 20% Gyroid | Perimeters 2 | Nozzle size 0.40 mm | Layer height 0.20 mm | Printed with Original Prusa MINI+ |
| Made in | Finland |
