PalloFrame L20
Vast space
Cheapest shipping from 10 €
SKU: DEVJ-PALLOFRAME-L20
Stock Status:
4 pcs
Delivery Status: 30-60 days
Pre-order item
Description

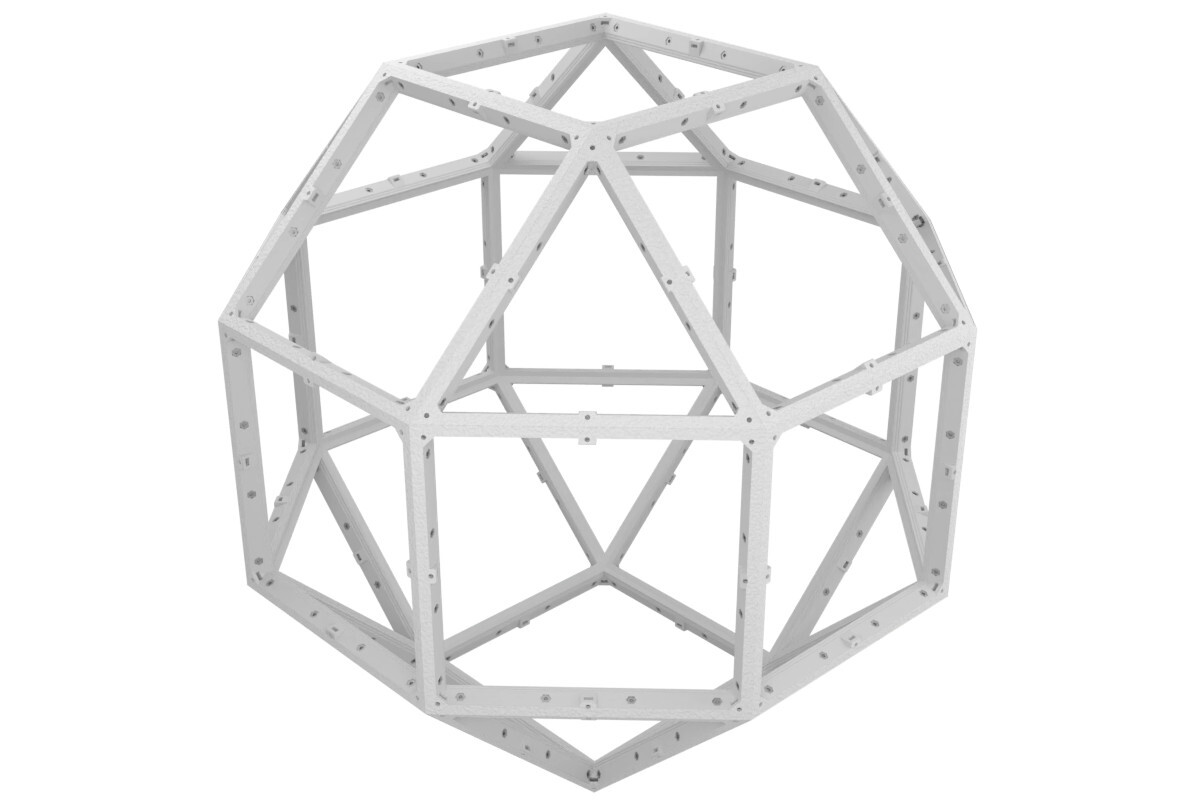

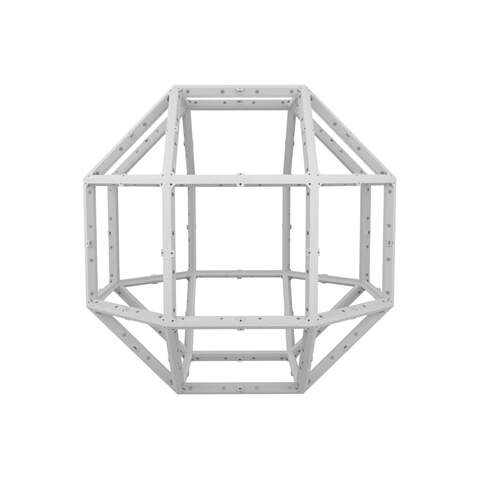

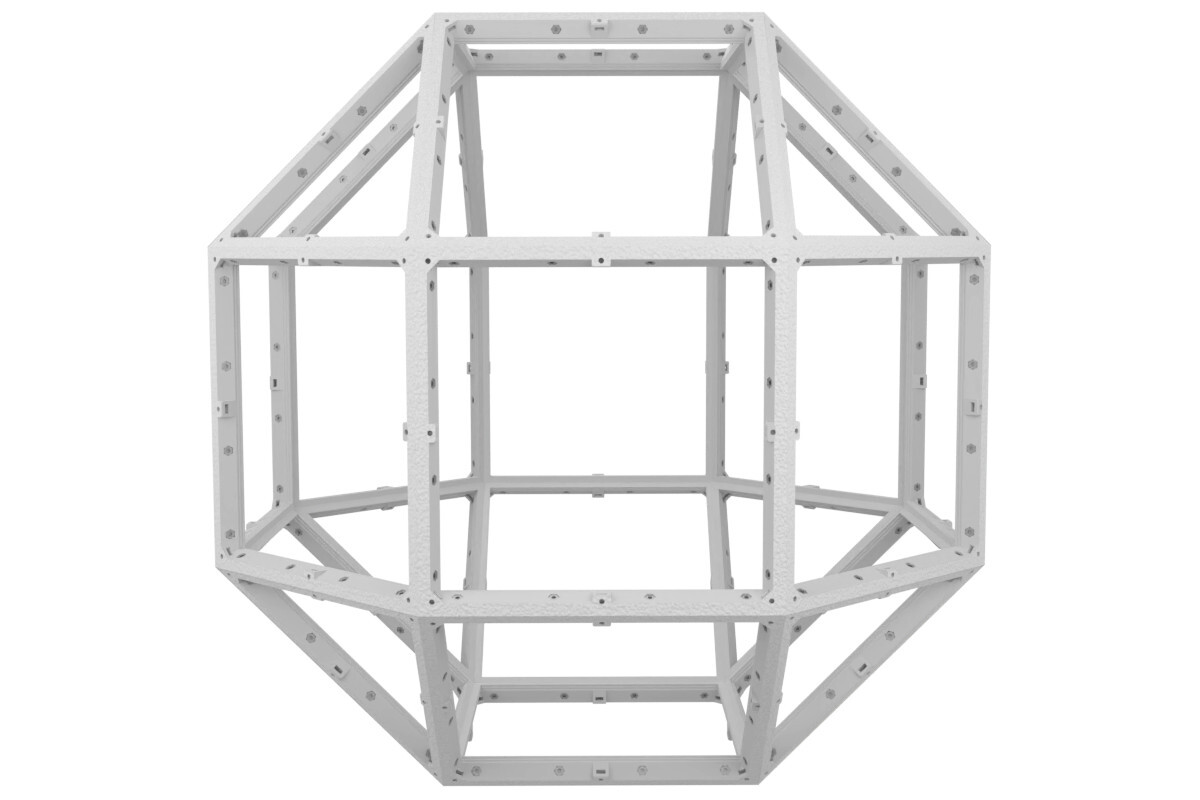

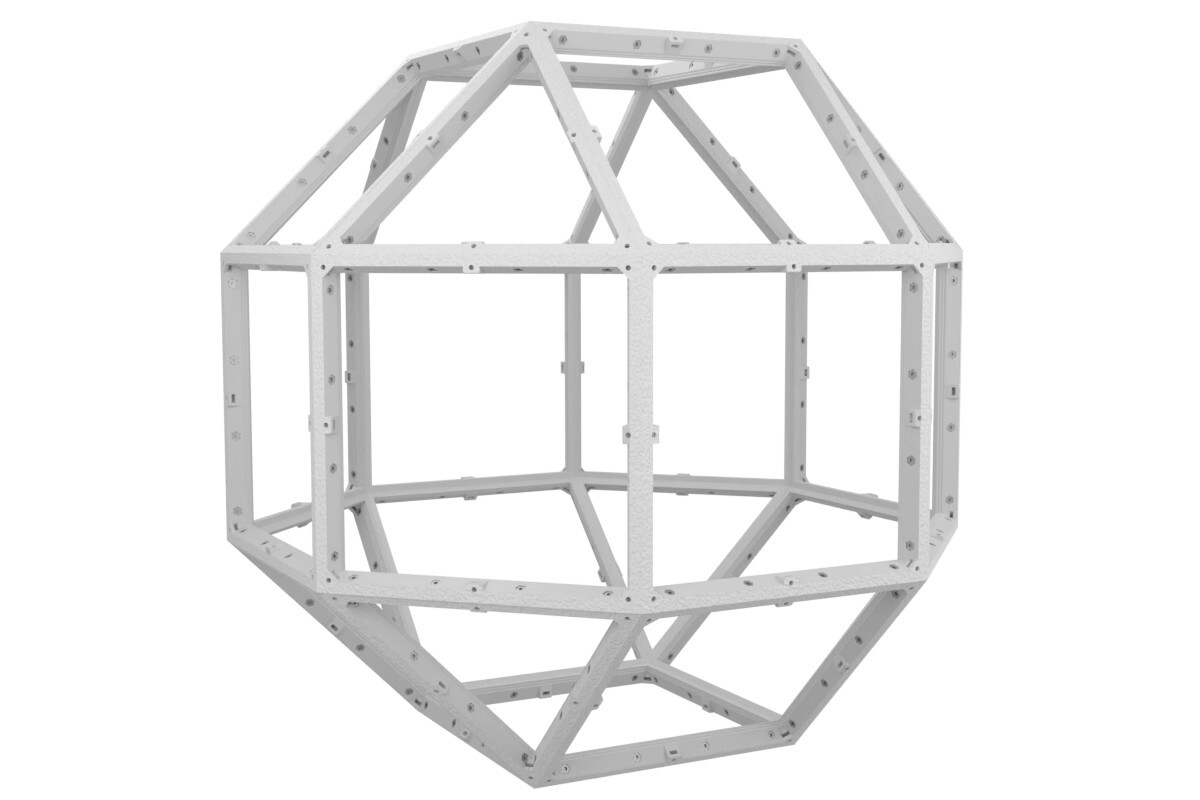

SolidFrame uses the super-shape called "rhombicuboctahedron". It is an Archimedean solid with excellent mechanical and geometrical properties. Its 14 square and 8 triangle faces can support up to 28 research modules.
L20 sports a massive inner volume. Thanks to its elongated sides (i.e. large side length vs. thickness ratio), the frame occupies little angular space as seen from the center. However, L20's relatively thinner sides are more prone to bulging and it can support nowhere as heavy weights as L10 and L5.
Highlighted Features
- Low weight
- Modular research device insertion (multi-point with M3 metal screws and nuts)
- Orhogonal XYZ views | All faces look at the center
- Adjacent squares form 45 deg angles
- Open-source (STL files available) | 3D printable
Example Applications
- Basis for a scientific set-up
Technical Data
| Triangle pieces | 8 |
| Square pieces | 18 |
| Piece side length | 20 cm |
| Connectivity | 8mm hex-socket M3 screws and nuts |
| Material | 3D-pinted PET-G |
| Dimensions | x |
| Weight | x |
